Standard hardware components List of Kiosk:

Items	Specification Details
PC System (Customizable)	Motherboard	Advantech/ Seavo/ Gigabyte
	CPU	Dual core G2020, Four Core I3/ I5 /I7
	RAM	2GB/4GB/8GB
	HDD	320G/500G
	Power Supply	Hunt Key/Great Wall
	Interface	RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card
Touch Screen	Screen Size	17¡±, 19¡± (optional from 15¡± to 82¡±)
	Screen Type	SAW, IR, Capacitive
	Resolution	4096x4096
	Feature	High Transparence, Precision and Durability
Monitor	Screen Size	17¡±, 19¡± (optional from 15¡± to 82¡±)
	Brightness	300cd/m2
	Contrast	1000:1
	Resolution	1280x1024(1920*1080)
Kiosk Cabinet	Material	Cold-rolled Steel ST12 SPCC with1.5mm thickness
	Coating	Car painting technology
	Feature	Easy service access through front and back
	Color or Logo	Customizable
	Parts	Multimedia speakers ,Internal ventilation system
Card Reader	Card Type	Magcard, IC Card, RF Card, Mifare Card, UL Card
	Interface	RS232/USB
	Card Entry Method	Signal of Magnetic, Optoelectronic and rear card
Encrypted Pin Pad	Key Life Span	2,000,000 cycles
	Key Force	2-3N
	Key Trip	>2.5mm
	Protection Level	IP65
Bill Acceptor	Brand	Cash Code/ MEI/ ITL/ICT
	Validation Rate	High than 96%
	Capacity	600notes~1500notes
Thermal Printer	Brand	Epson/Custom/Citizen
	Auto-cutter	Included
	Width of Paper	50mm/80mm/112mm
	Printing Speed	150mm/s
	Buffer of Data	4Kb
	Interface	RS232/USB
Operation System	Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux
Power Supply	AC Input Voltage		100~240V/AC
	Frequency		50Hz to 60Hz
Package	Safe packing with bubble foam, in wooden case with screws
Other Peripheral	A4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port and etc

Features of Payment  Kiosk:

1.Infrared Touch screen. With waterproof, Dustproof, Anti-riot, Vandal proof and other functions.

2.Touch screen resolution:4096*4096 Surface Hardness: Mohs' hardness rating of 7

3.Service life: more than 7 years

4.Transmittance: ¡Ý98%

5.Static protection: Meet EN6100 standard.

6.Mini touch point:2.5mm

7.Scan rate: 50 scans/m

8.Noise: NO

9.Packing:Seaworthy packing: Polywood packing

10.MONITOR:TFT,Brightness: 300cd/m2,Resolution: 1280 x 1024

11.COMPUTER:Motherboard: GIGA G41,CPU: E5700,RAM:2G,Harddisk:500G,Hunter key: R80

The main peripheral devices as follow shows of Payment Kiosk:

1, Size for TFT LCD

2, Touch screen

3, Infared touch screen

4, Host computer

5, Inner speaker

6, Interface : USB 2.0, RJ-45

7, Dual screen

8, RF card card reader

9, 2-3 track magnetic card reader
10,Card writer
11,Card dispenser
12,Thermal printer
13,A4 laser printer
14,Keypad
15,plastic keyboard
16,Vandal-proof stainless steel  keyboard
17,Bluetooth
18,GPRS
19,Coin acceptor
20,Cash acceptor
21,Barcode scanner
22,Web camera
23,OS : Windows XP
24, Input voltage 110¡À10% 50Hz¡À1Hz
25, Input voltage 220¡À10% 50Hz¡À1Hz
26, UPS(uninterruptible power supply)
27, With your own Logo

Self-service Kiosk includes IPAD kiosk, ipad kiosk enclosure, touch  touch screen information kiosk ,digital signage , card dispenser kiosk ,self-service kiosk,touch screen information kiosk terminal,kiosk , self service digital signage terminal,note accepter lobby kiosk,dual screen kiosk, mall kiosk, interactive information kiosk, kiosk with touch screen , Gaming kiosk, Health care kiosk,airport kiosk,ticket vending kiosk,wall mounted kiosk, interactive kiosk, bill payment kiosk,card reader touch screen , dual screen kiosk,photo kiosk, information inquiry kiosk, and multimedia information kiosk.it has wall mounted kiosk and frees tanding kiosk,dual screen kiosk, single screen kiosk,double side screen kiosk, with the touch screen size ranges from 15¡± to 82¡±. kiosk has approved CE, RoHS, FCC, 3C certification.

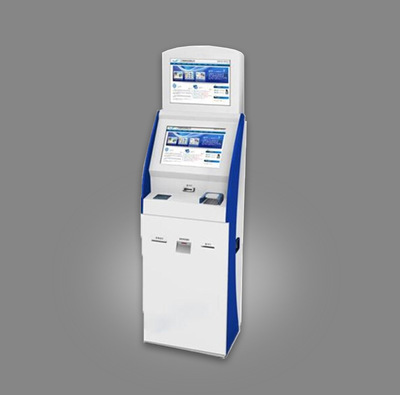

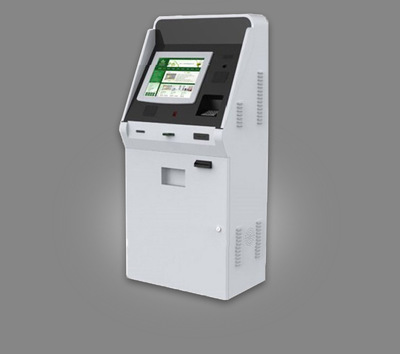

Hot sell self service kiosk designs:
