Application areas:intelligent transportation, radio and television industry, stadiums, timing and scoring, theme parks, advertising, information dissemination, themed theater, city exhibition,etc.
| Specification |
HLL-P10-HB1004 |
JH-P16-1616 |
| Pixel pitch |
10mm |
16mm |
| Pixel Configuration |
1R1G1B |
2R1G1B |
| Pixel Density(doc/sqm) |
10000 |
3906 |
| Module Resolution(W¡ÁH) |
32*16 |
16*16 |
| Module Size |
320*160*15mm |
256*256*18mm |
| Module Power |
6A/30W |
30W |
| Scanning mode |
1/4 scan |
1/2s |
| LED Chip |
Nationstar |
Epistar346 |
| Brightness |
5000cd/sqm |
8000cd/sqm |
| Viewing Distance |
10m~150m |
16m~150m |
| Viewing Angle |
140/140 |
120/110 |
High performance waterproof and dust proof
The rating up to IP65,can adapt to all kinds of bad rain weather;tructural parts are made of a special surface treatment process, with good moisture corrosion resistance; electronic circuits are used in three anti-treatment process, to further protect the product against dust, moisture, corrosion, to ensure that products have strong weatherability, can be long-term used in harsh outdoor environments.

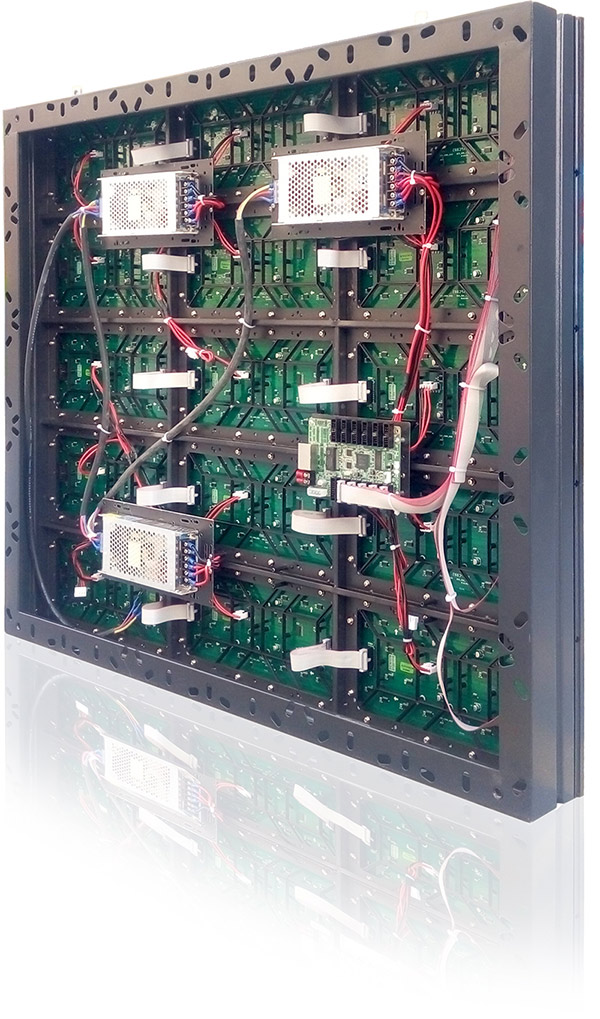

Easy to install & maintenance
The product design following the concept of simple maintenance, using modular, redundant design, convenient for product maintenance.Multiple measures to ensure the reliability, security of the cabinet installation.
|
